Spiratone Bello-Dupliscope Slide Duplicator

Spiratone Bello-Dupliscope

Spiratone Bello-Dupliscope

Adjustable Slide Duplicator

  • Macro
  • Mini-Bellows
  • T-Mount
  • For all cameras with T-Mount
Spiratone Bello-Dupliscope

Spiratone Bello-Dupliscope

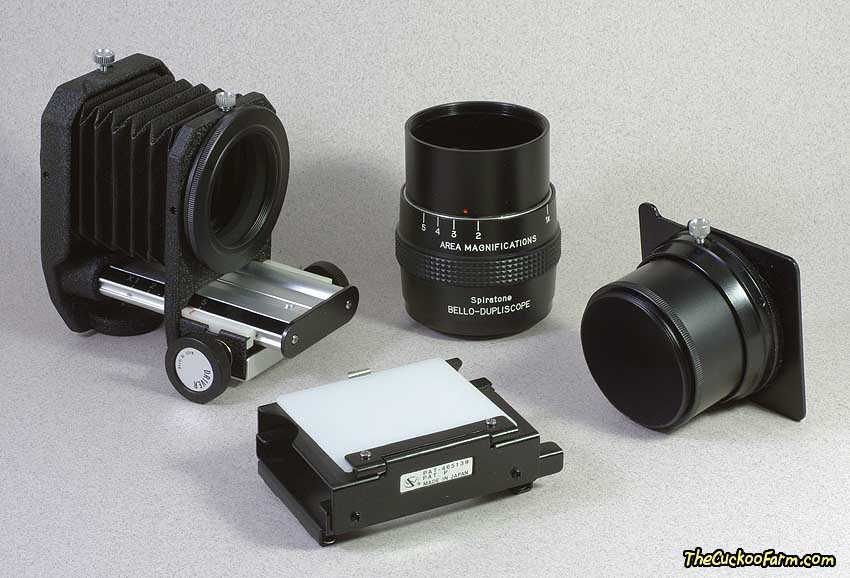

Complete

Spiratone Bello-Dupliscope

Spiratone Bello-Dupliscope

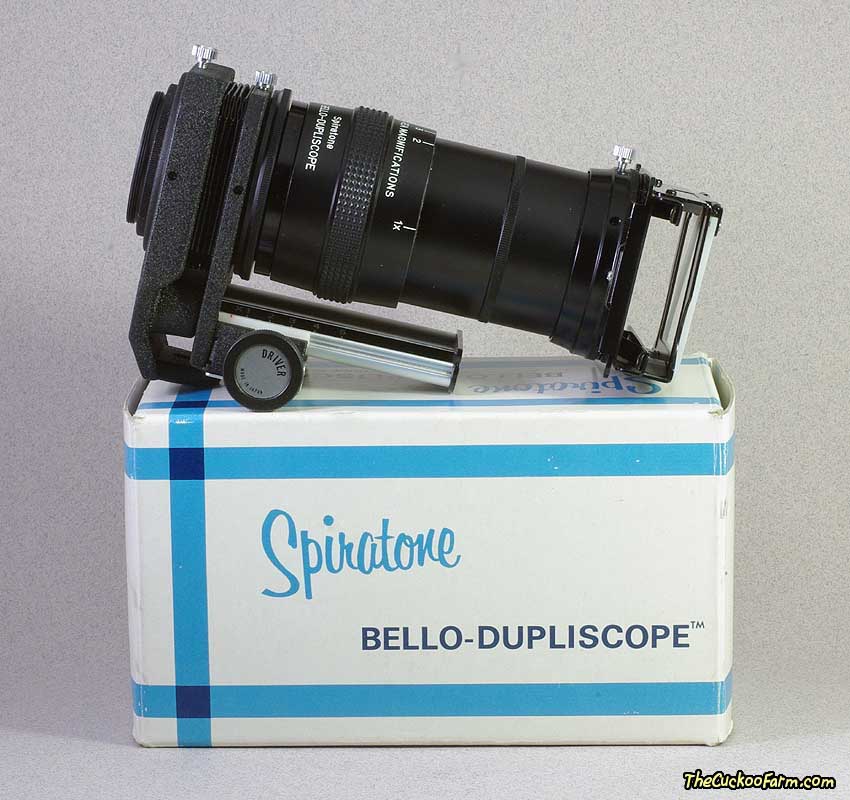

With Box

Spiratone Bello-Dupliscope

Spiratone Bello-Dupliscope

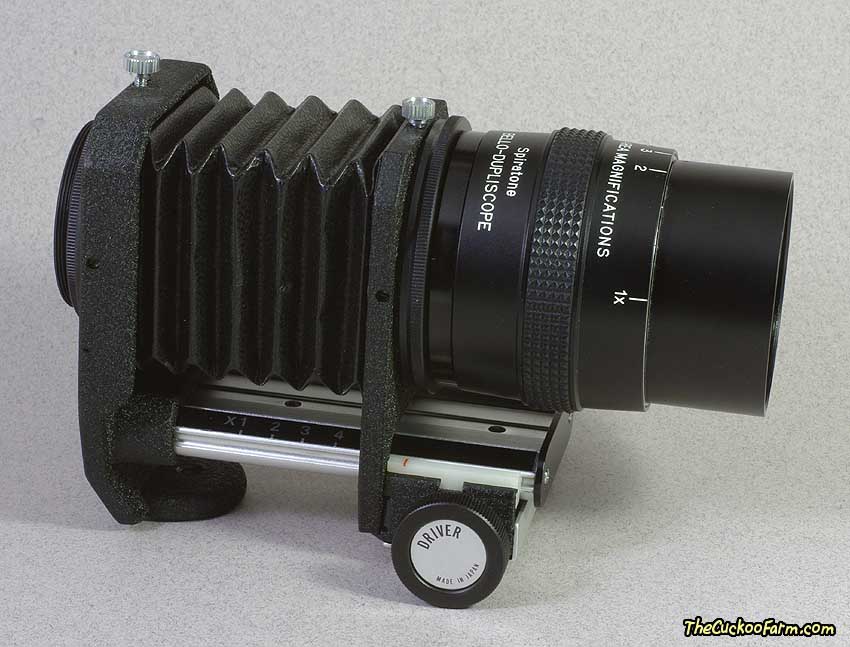

For Macro Use

Spiratone Bello-Dupliscope

Spiratone Bello-Dupliscope
Mounted

Spiratone Bello-Dupliscope

Spiratone Bello-Dupliscope

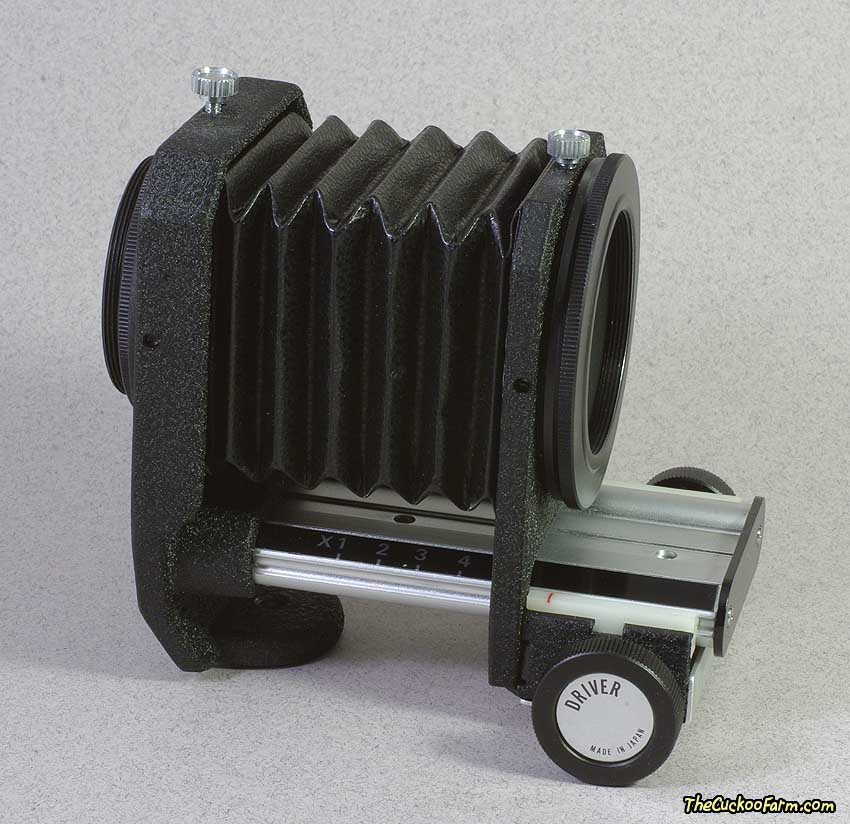

Bellows Only

Spiratone Bello-Dupliscope

Spiratone Bello-Dupliscope
Original 1984 Ad

This is the Spiratone Bello-Dupliscope Slide Duplicator. Similar to the tube type duplicators listed here, the bellows replaces the sliding tube for magnification. It's a great piece that's meant to be a zoom slide duplicator, a mini bellows, and an adjustable macro lens. It has a limited focus on the lens that is meant for fine adjustment. As a zoom slide duplicator, it is used complete with the slide carriage, the carriage adapter tube and the main lens mounted on the bellows. A mounted slide or strip of 35mm film can be placed in the carriage and moved side to side and the carriage itself can be moved up and down. This allows you to find the area of the slide that you want to zoom in on. The amount of zoom is achieved by adjusting the bellows behind the lens. As a macro lens, the carriage and it's adapter are removed from the lens and the lens is removed from the bellows. The lens can also be left on the bellows for various magnification.
